GLASS-PHOTO-GLASS
Translucently photo in glass by FFPROCESS®
Technical characteristics
GLASS-PHOTO-GLASS is shatterproof safety panel.
GLASS-PHOTO-GLASS panel stratification, vacuum with heat cycle and in absence of resins, is the maximum quality guarantee in terms of:
• duration
• security purpose (in case of shocks)
• durability of the transparent laminated glass with light transmission rate (except photo) more than 85%
Our working process to guarantee, according to UNE-EN ISO 12543-4:1998 :
• humidity condensation resistance (except photo)
The test is the humidity condensation test, according to UNE-EN ISO 12543-4:1998 “Glass for building. Glass laminated and safety glass laminated. Part 4: Methods of durability test”. The test involve to place some samples vertically into a climate chamber and keep them during two weeks in a temperature of (50+-2)ºC and a relative humidity more than 95%. It is allowed the water condensation on the samples area. Then leave the samples get cold and dry in a normal atmosphere and check in order to verify any failure in the intercalator (bubbles, opacity, etc). Result: satisfactory (a light opacity appears, almost negligible in all the perimeter but over 15 mm from the edge).
• high temperature resistance (except photo)
The test is the high temperature test according to UNE-EN ISO 12543-4:1998 “Glass laminated and safety glass laminated. Part 4: Methods of durability test”. The test involve to introduce the glass into a heater and keep it during 2 hours in a temperature of (100+-3)ºC. Then leave the samples get cold and dry in a normal atmosphere and check in order to verify any failure in the intercalator (bubbles, opacity, etc). Result: satisfactory (no failures and defects in any of the samples tested).
• radiation UV resistance (except photo)
The test is the radiation test according to UNE-EN ISO 12543-4:1998 “Glass for building. Glass laminated and safety glass laminated. Part 4: Methods of durability test”. The test involved to subject the glasses with 2.000 hours of radiation. For that reason, the samples have been placed from 1.100 mm in distance of 16 Ultravitalux lamps which made an area of (1x1) m. The samples place is according to the rule UNE-EN ISO 12543-4:1998 and the temperature was kept to (45+-5)ºC. To evaluate the durability, the illuminated transmission spectrum have been measured between 380nm and 780 nm before the test and 2.000 hours of exposure. It have been made a minimum of three transmission measures of each sample and calculated the average of them. From this point of average of illuminated transmission spectrum have been calculated for every one of them according to the rule UNE-EN 410:1998. Also we inspected the samples in order to check for any failure (bubbles, opacity, etc). Result: satisfactory (after the 2.000 hours of exposure, we can not appreciate any failures in the intercalator).
Usable type of photo
It is possible to use all the types of photos, of any format, digital or not.
Usable type of glass
It is possible to use different types of glasses, in various thicknesses: normal float or extra clear glasses, stratified glasses, tempered glasses etc.
Dimension
GLASS-PHOTO-GLASS panels maximum sizes are mm 2800 x 1500
Types of application
Interiors: shelves, work plans, internal walls, enlightened walls, floating floors, enlightened false ceiling, desk tops, tables, door claddings, vanity tops, etc.
The GLASS-PHOTO-GLASS panels may be used also outdoor, in properly framed metalwork.

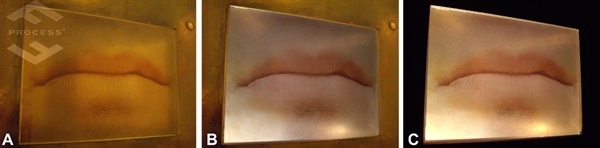

Examples of GLASS-PHOTO-GLASS panels
A = front lighted
B = front and back lighted
C = back lighted
FACTORY PRODUCTION CONTROL to guarantee the mechanical characteristics of GLASS-PHOTO-GLASS panels:
• Flexural strength under concentrated load, before and after ageing cycles;
• Rupture energy, before and after ageing cycles;
• Monoaxial Traction, before and after ageing cycles;
• Other specific quality tests for any specific final application
